How does TiltWatch work?

This packaging label provides indication of tilting. This user friendly device is the best choice for goods that must remain upright whilst in transit. These tamper evident and moisture-proof TiltWatch labels in a rigid plastic cover are ideal for export consignments.

You simply remove the silicone backing paper and press the indicator on the consignment. If tilting occurs the indicator turns red. With no false activation under normal handling or vibration, TiltWatch provides a reliable, accurate indication of miss-handling.

This indicator only turns red if the product it is affixed to is tilted. It remains unaffected by movement due to normal handling conditions and aircraft take-offs.

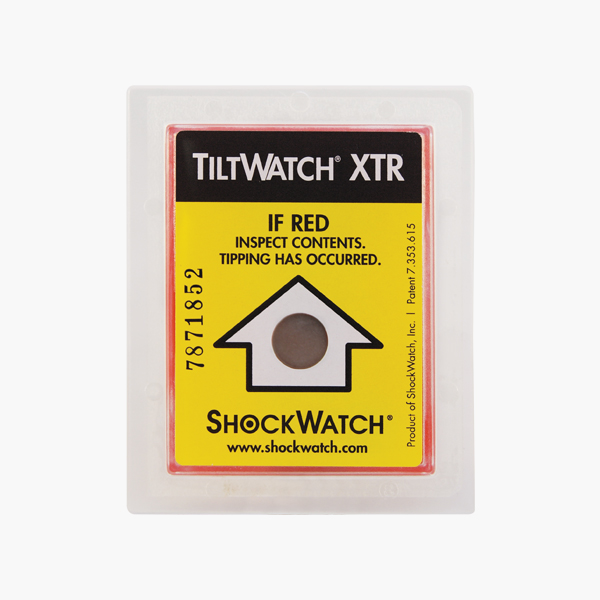

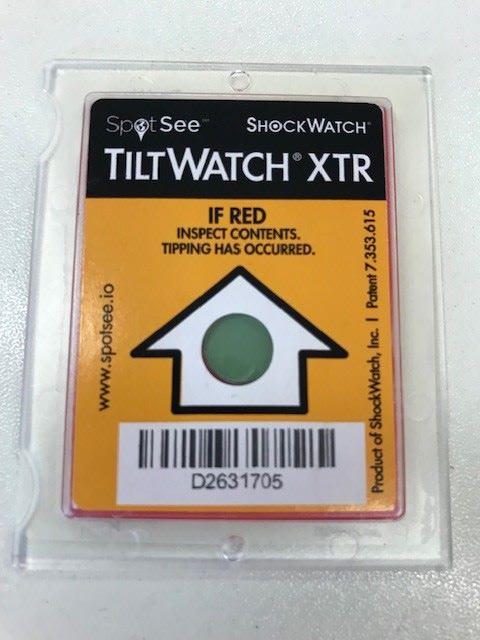

TiltWatch XTR Instrument Specification:

Dimensions: 73.66 x 68.58 x 5.08mm
Adhesive: 2 mil high tack acrylic
Shelf Life: 2 years
Installation: Pressure-sensitive adhesive or holes to accommodate screws, nails and staples
Security: Provides irreversible evidence of tilting once armed

Indicator

Activation Angle: 80° from vertical
Accuracy: +/-5%
Monitoring Range: 90° within a single plane

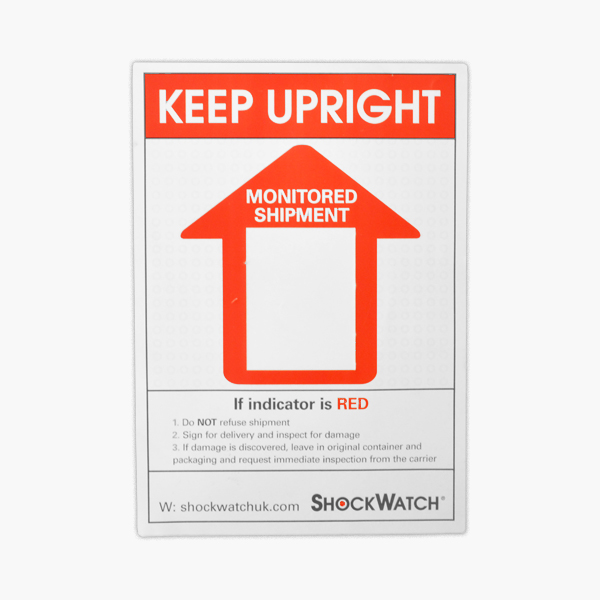

The Tiltwatch label comes with alert stickers. Place the alert sticker on the bill of landing as a reminder to customers to check the Tiltwatch XTR monitor immediately upon arrival.

Need something more accurate?

Try Tiltwatch Plus.

This indicator provides 360 degrees monitoring – indicating the exact angle of tilt or whether complete overturn occurs

For more information on how to use Tiltwatch labels click here or call our Tiltwatch experts 08456 439 975

Typical Applications

• Oil-filled water heaters
• Electronics
• Packaging/Crafting
• Aerospace & Defence
• Scientific & Technical Instruments
• Industrial batteries
• Hazmat containers
• Auto & truck parts
• Electronic cabinets
• Chemical shipments
• Commercial appliances
• Refrigeration equipment
• Computer hardware
• Furniture & Fittings
• Compressors
• Copiers
• Biomedical supplies
• Glass
• HVAC
